A mute wedge pump is an accessory that may be installed adjacent to the evaporator of a mini split unit to capture and discard any possible condensation created during operation. This model is designed in mind of aesthetics and silent operation. Is sold complete with 230 ml (7.77 oz) overflow reservoir, discharge tube, and can loft up to 32 feet.

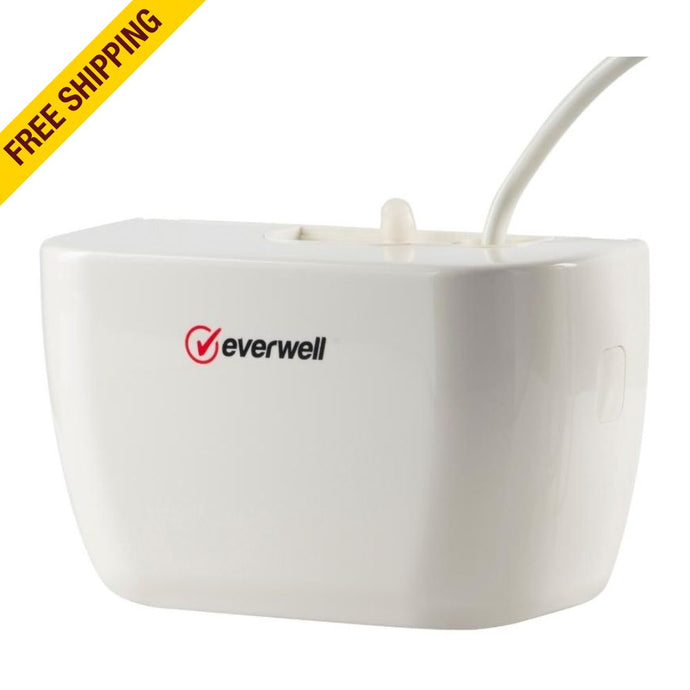

Mute Wedge Condensate Pump
Brand: Everwell
SKU: CP-MWP
- Power supply: 100-240v AC, 1ph 50/60hz
- Water flow rate: 10 gallons per hour @ 0 head
- Water storage: 7.77 oz
- Maximum water temperature: 150 ºF
- Maximum recommended head: 26’2.9 in
- Sound level: <19 db(a) @ 1mt
- Discharge tube: ¼ in ID
- Unit output: 157,000 btu/h
- Safety switch: 3a normally closed
- Class ii appliance
- Rated: continuous
- Ip protection: ipx5
- Thermally protected
- CE marked
- Fully potted
Dimensions (L*W*H): 65 in x 28 in x 4 in
